Penalty Post Method – Functional & Technical Explanation

Purpose

The penalty_post method is used to post a penalty document in SAP FI-CA for an existing open item using BAPI_CTRACDOCUMENT_CREATE.

High-Level Process Flow

• Read the open FI-CA document using FBNUM
• Determine Business Partner, Contract Account, and Contract
• Calculate or accept penalty amount
• Create a penalty document using BAPI
• Commit the transaction if successful

1. Constant and Variable Initialization

The method initializes constants such as:

• Currency: BHD
• Company Code: BAH
• Application Area: P (FI-CA)
• Posting keys, document source, and BAPI extension structure

2. Input Parameter Handling

If provided, the following values are taken from input parameters:

• Business Partner (GPART)
• Contract Account (VKONT)
• Contract (VTREF)

If not provided, these values are derived from the open document.

3. Fetch Open Item

The method reads DFKKOP and DFKKKO tables to fetch an open item using:

• FBNUM
• AUGST = space (open item)

4. Document Header Preparation

The FI-CA document header is populated with:

• Document type and application area
• Posting, entry, and document dates
• Currency and reference document number
• FIKEY generated using a utility method

5. Penalty Amount Calculation

6. Line Item Preparation

The line item contains:

• Main and Sub transaction
• Penalty amount
• Due date
• Business Partner, Contract, and Contract Account
• Reference text using original FBNUM

7. BAPI Extension Handling

The structure BAPI_TE_DFKKOP is filled to store:

• Original FBNUM
• Manual posting reference

8. Document Creation

The method calls BAPI_CTRACDOCUMENT_CREATE with:

• Document header
• Partner positions
• BAPI extension data

9. Commit & Output

• If successful, transaction is committed
• Posted document number is returned
• Business Partner, Contract Account, and Contract are exported
• In case of error, an error flag is set

Key Highlights

• FI-CA compliant penalty posting
• Supports automatic and manual penalty calculation
• Uses BAPI extension correctly
• Clean commit and error handling

METHOD penalty_post.
  " Penalty Post
Importing Parameters

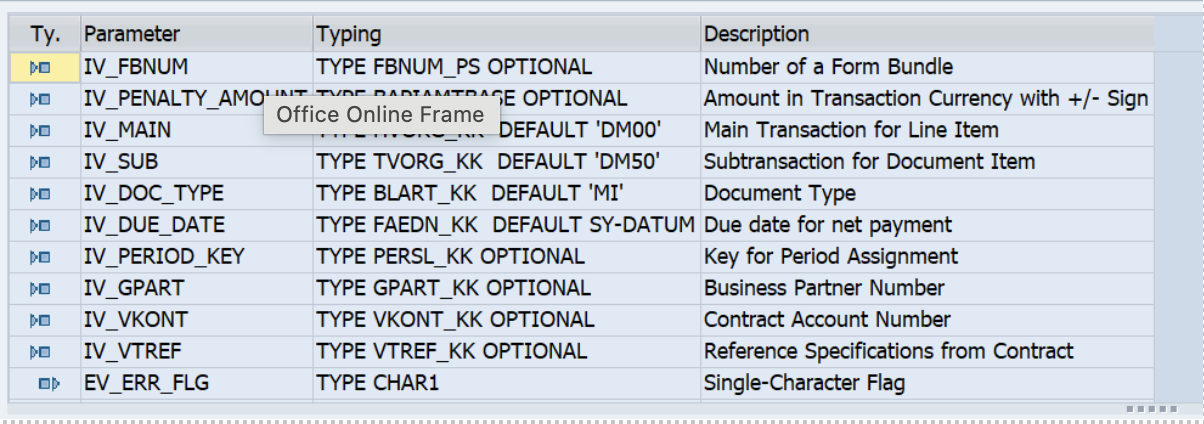

The following image shows the importing parameters for the method:




Figure: Importing Parameters for penalty_post

  CONSTANTS: lc_waers  TYPE waers  VALUE 'BHD',
             lc_testrun TYPE flag   VALUE '',
             lc_applk_p TYPE applk_kk VALUE 'P'.

  DATA: lv_fikey TYPE fkkko-fikey,
            lv_fbnum TYPE fbnum_ps,
            lv_gpart TYPE gpart_kk,
            lv_vkont TYPE vkont_kk,
            lv_vtref TYPE vtref_kk.

  " Check input parameters
  IF iv_gpart IS SUPPLIED AND iv_gpart IS NOT INITIAL.
    lv_gpart = iv_gpart.
  ENDIF.

  IF iv_vkont IS SUPPLIED AND iv_vkont IS NOT INITIAL.
    lv_vkont = iv_vkont.
  ENDIF.

  " Fetch open item
  SELECT SINGLE op~*, ko~*
    FROM dfkkop AS op
    INNER JOIN dfkkko AS ko
      ON op~opbel = ko~opbel
    INTO @DATA(ls_dfkkop_open)
    WHERE op~fbnum = @iv_fbnum
      AND augst = @space.

  IF sy-subrc NE 0.
    CLEAR ls_dfkkop_open.
  ENDIF.

  " Prepare header and line item
  ls_fkkko-appl_area = lc_applk_p.
  ls_fkkko-doc_type  = iv_doc_type.
  ls_fkkko-currency  = lc_waers.
  CALL METHOD zdcl_utility=>get_fikey
    IMPORTING ev_fikey = ls_fkkko-fikey.

  " Calculate penalty amount
  IF iv_penalty_amount IS INITIAL.
    lv_penalty_amt = (ls_dfkkop_open-op-betrw) / 10.
    lv_penalty_amt = -1 * lv_penalty_amt.
  ELSE.
    lv_penalty_amt = iv_penalty_amount.
  ENDIF.

  " Append line item
  ls_fkkop-item = '000001'.
  ls_fkkop-amount = lv_penalty_amt.
  APPEND ls_fkkop TO lt_fkkop.

  " Call BAPI to create document
  CALL FUNCTION 'BAPI_CTRACDOCUMENT_CREATE'
    EXPORTING
      testrun = lc_testrun
      documentheader = ls_fkkko
      completedocument = abap_true
    IMPORTING
      documentnumber = lv_doc_posted
      return = ls_return
    TABLES
      partnerpositions = lt_fkkop
      extensionin = lt_ext.

  " Commit if posted
  IF lv_doc_posted IS NOT INITIAL.
    CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'.
  ENDIF.

ENDMETHOD.
